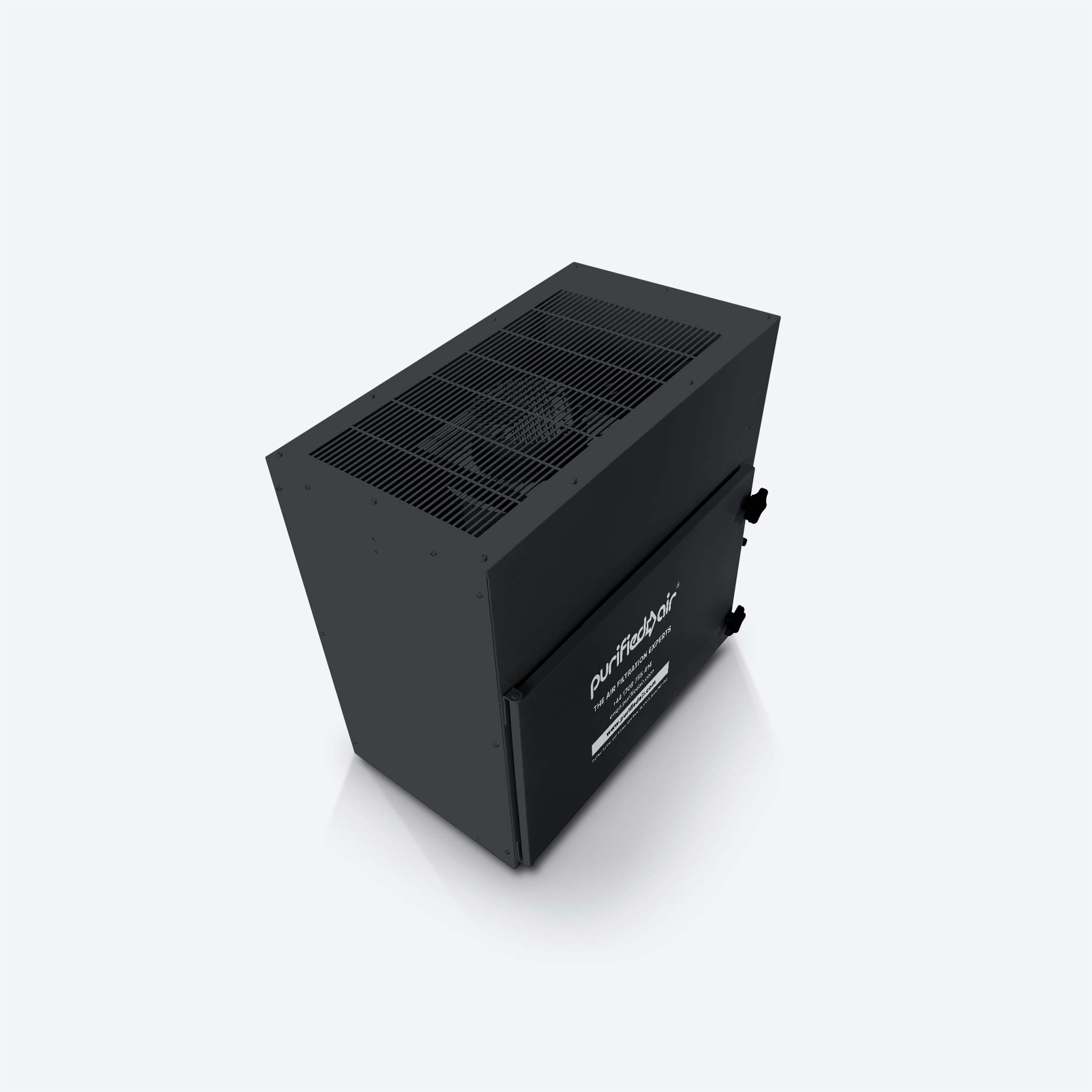

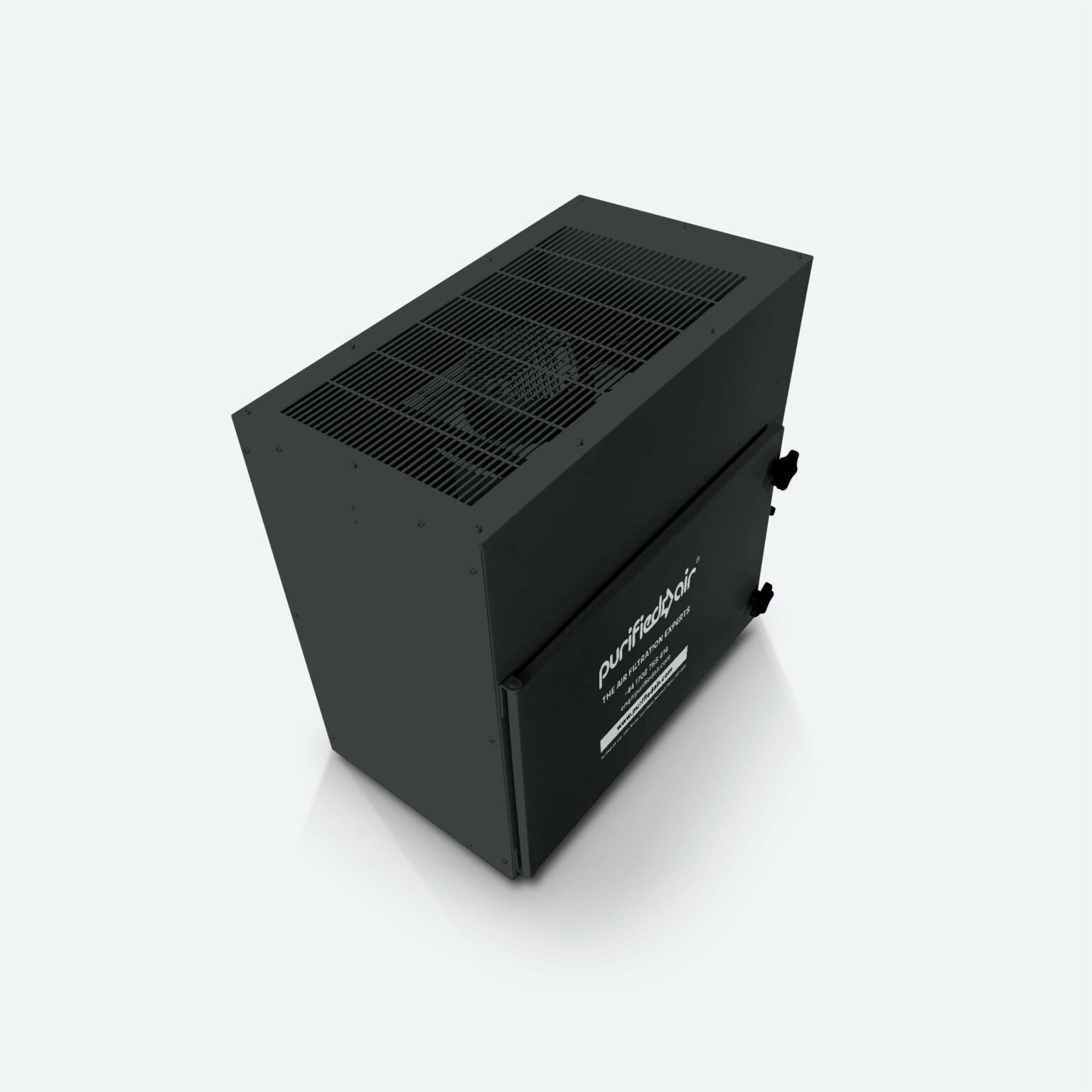

ESP 600/1000
Industrial
Our Electrostatic Precipitators, or ESPs, are up to 99% efficient. Due to their compact size and built-in fan system, they can be directly mounted to a machine tool or onto a stand or bracket.
For environments requiring higher internal reflow efficiency (vent to workshop), we also offer a HEPA filter after the fan unit. The ionisation voltage has been designed to run at a positive potential, making it ideal for indoor applications. This highly efficient oil mist, smoke and fume collector is effective on most metalworking fluids.
Low vibrations
Low operating costs
Variable Airflow
Environmentally sustainable technology
Highly efficient, Industrial ESP Air Filtration
Global leading brands have trusted Purified Air for over 40 years. We take great pride in knowing that our Industrial Electrostatic Precipitators (ESP) are unrivalled, with an efficiency of up to 99% down to 0.01 of a micron. Our products are compact, energy-efficient and affordable for small workshops but scalable for large turnkey projects, delivering a significant ROI.
When operating industrial equipment, it is fundamentally vital to manage and remove oil mist, smoke and fumes produced during the machining processes.
The benefits of electrostatic technology
Removes harmful oil mist, smoke and fumes
Low energy demand
Easy / low maintenance
Energy efficient
| ESP 600 | |
|---|---|
|
Max Air Volume |
up to 600m3/h |
|
Dimensions |
W625mm | H420mm | D389mm |
|
Weight |
30KG |
|
Power |
180W |
|
HEPA Filter |
Available |
| ESP 1000 | |
|---|---|
|
Max Air Volume |
up to 1000m3/h |
|
Dimensions |
W625mm | H600mm | D389mm |
|
Weight |
41KG |
|
Power |
280W |
|
HEPA Filter |
Available |

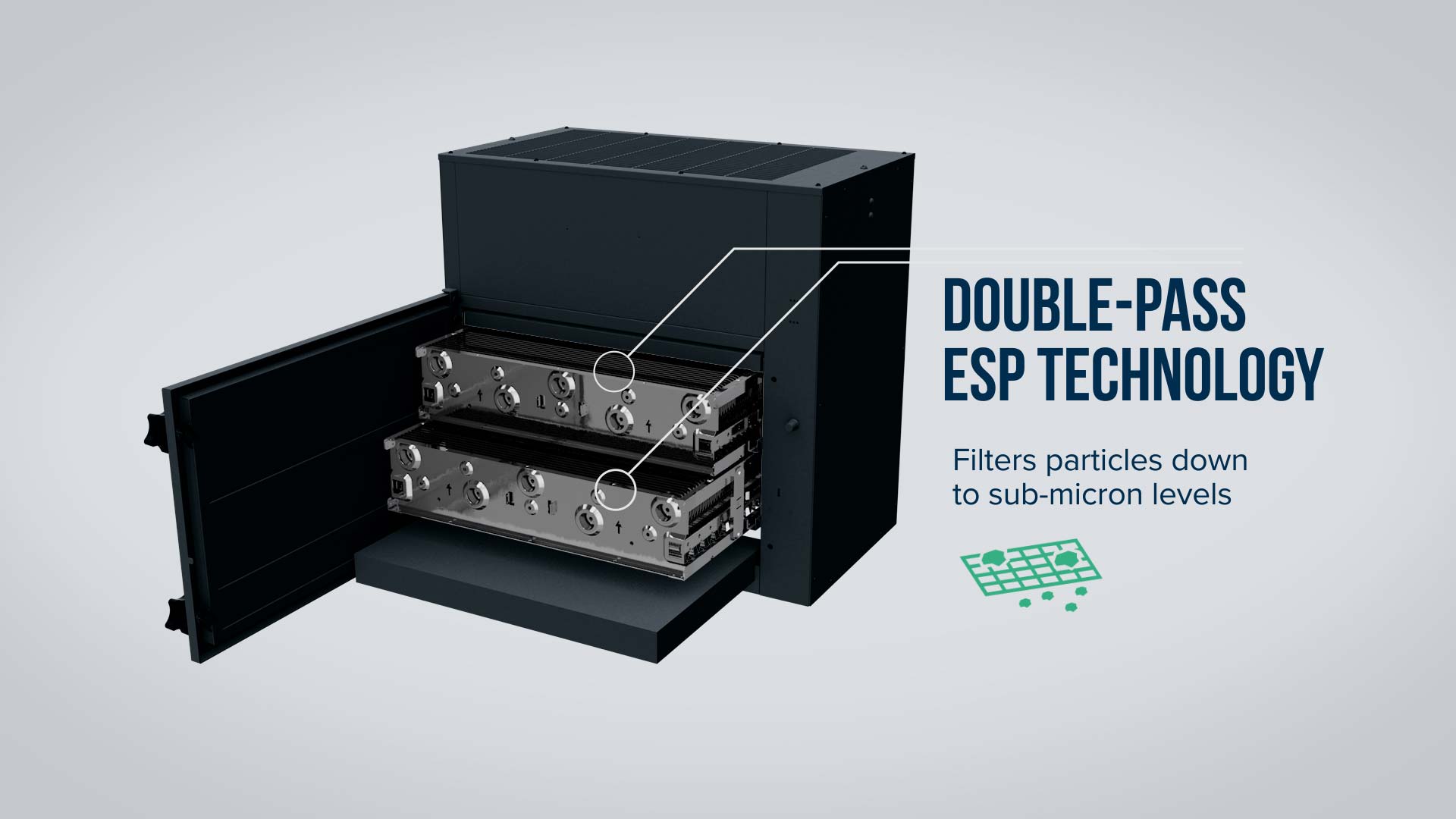

Look inside the unit
