Reflow
Commercial Kitchen Filtration

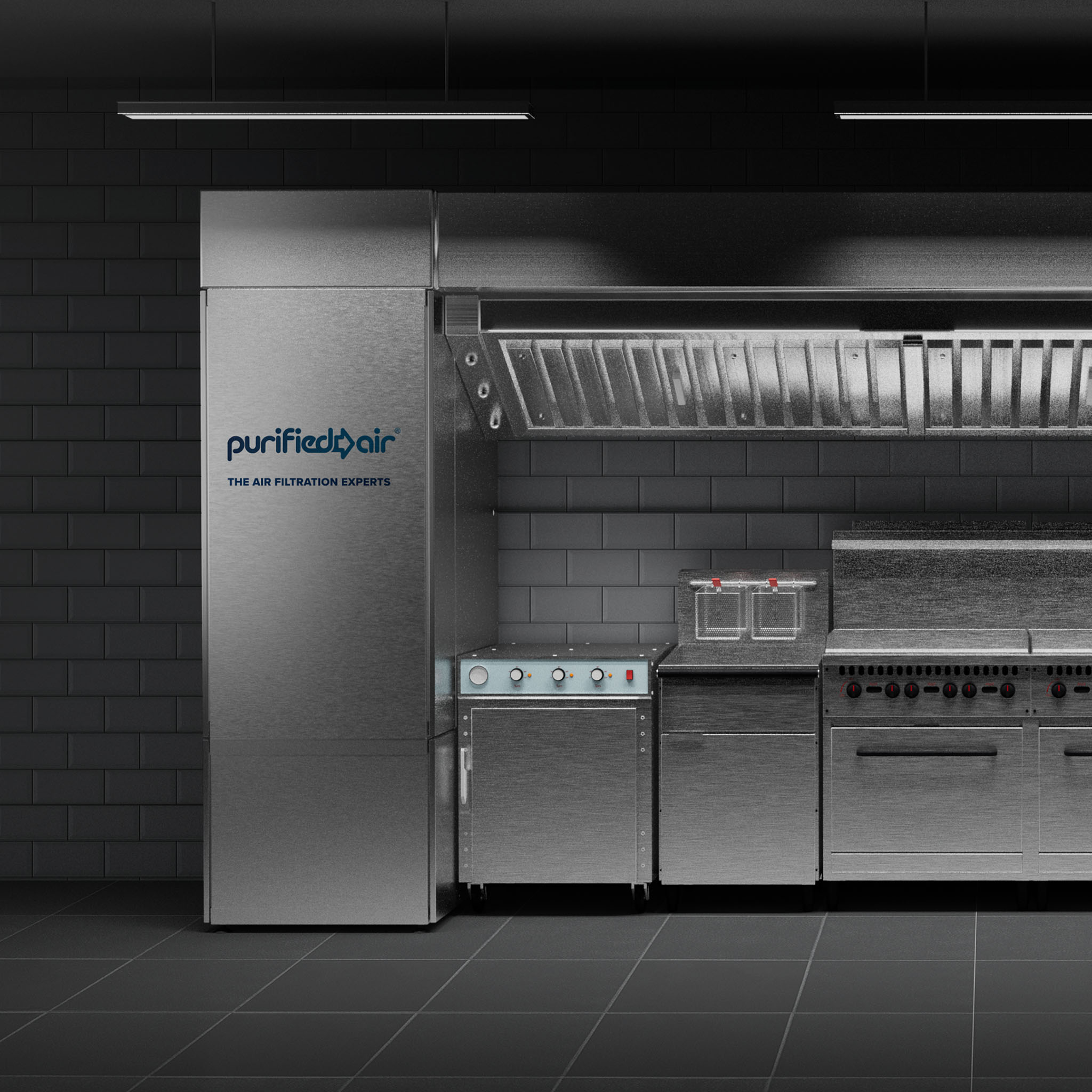

Our revolutionary recirculation units extract the fumes, grease and odour into our bespoke filtration tower.
There is an increasing demand for unlocking new locations where planning permission may have been refused or where a duct route to outside is simply not possible; Purified Air now has a solution. Our revolutionary recirculation unit extracts the fumes, grease and odour into our filtration tower and returns cleaned air back into the kitchen fully filtered.
The benefits of Reflow recirculation system
Easy installation
Vertical or linear configurations available
Up to 8 stages of air filtration
Bespoke service available

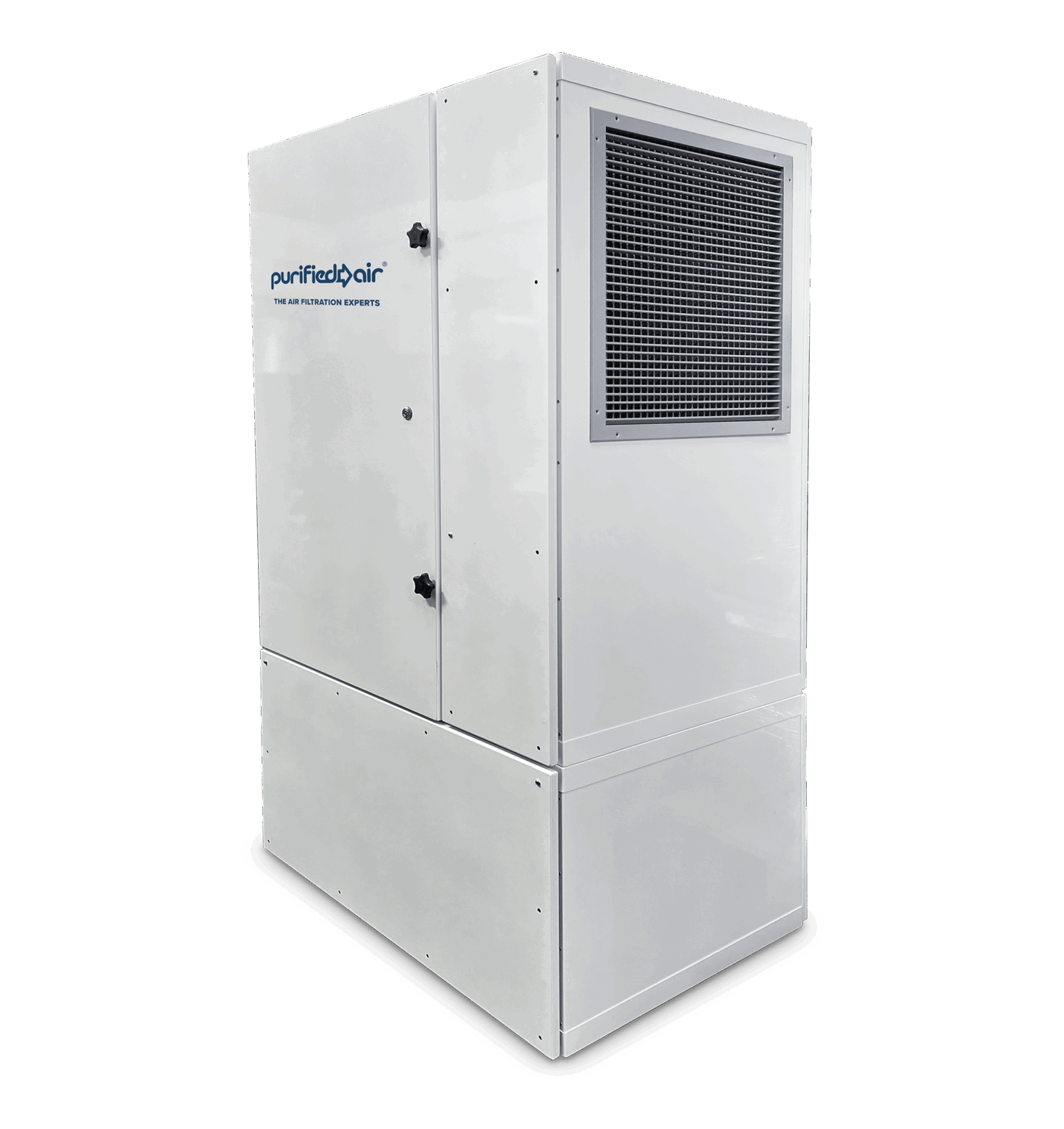

Reflow Range
We manufacture three standard units, Reflow 0.9, Reflow 1.5 and Reflow 2.0 handling 0.9m3/s, 1.5m3/s and 2.0m3/s respectively, however bespoke horizontal or vertical units can be provided so no matter what the application or project size we have the solution.
Considerations
We must stress that this recirculation system is only suitable for commercial kitchens that exclusively use Electric equipment. We would also recommend that the kitchen space is fitted with air conditioning and ventilation to ensure kitchen temperatures are kept within comfortable levels.
Technical specification
Product
Max Air Volume
Dimensions
Weight
Electrical supply
Reflow 0.9
up to 0.9m3/sec
W800mm | H2200mm | D1100mm
570Kg inc filters
3 Phase - 16 Amp
Reflow 1.5
up to 1.5m3/sec
W1100mm | H2200mm | D1560mm
750KG inc filters
3 Phase - 16 Amp
Reflow 2.0
up to 2.0m3/sec
W1400mm | H2900mm | D2100mm
1400KG inc filters
3 Phase - 16 Amp

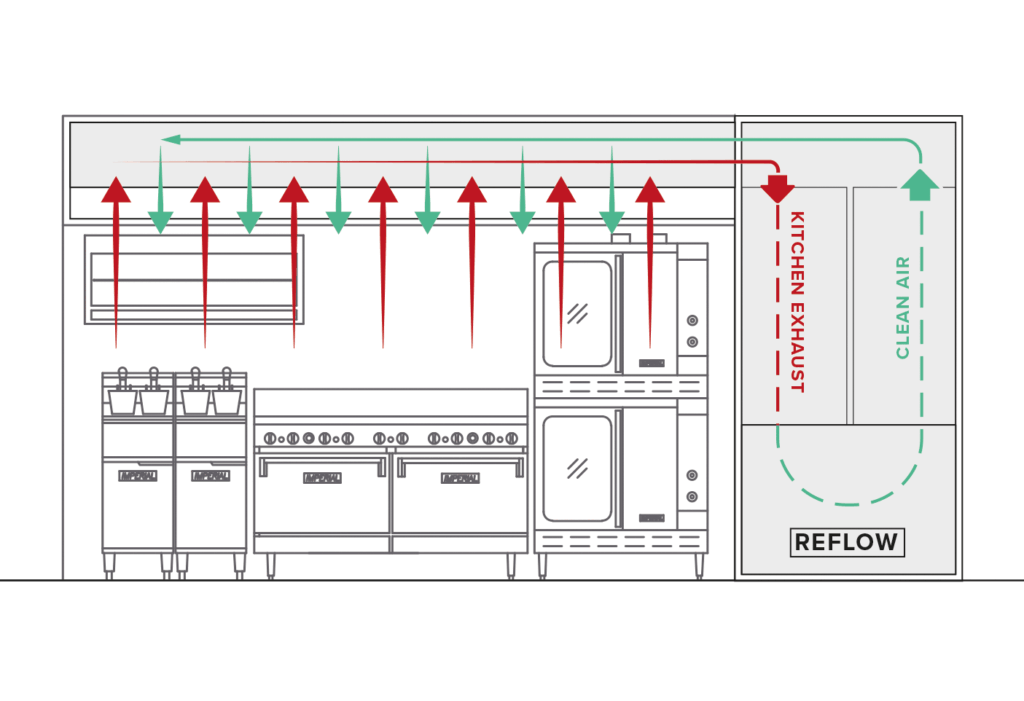

How it works
This commercial kitchen recirculation system works by extracting Air and passing it through up to eight stages of filtration, depending on the size of the filtration tower, then exits through the front of the canopy back into the kitchen space via various grille options, fully filtered. The filtration tower can even be remotely positioned if space is tight on the cook line.
