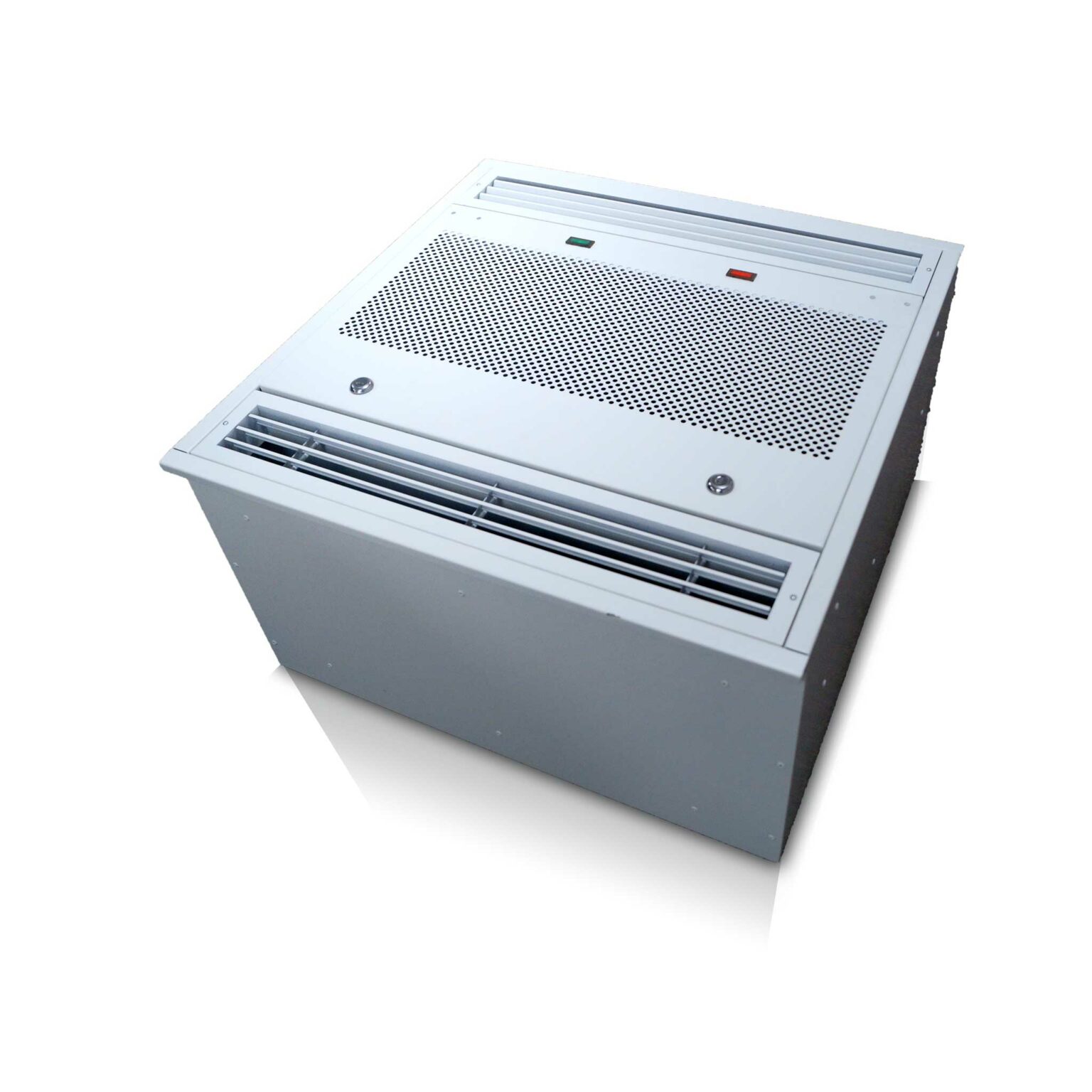

UVGI Ceiling Cassette Air Purifier
Indoor Air Quality
Our Ceiling Cassette is a versatile UV air purifier which fits seamlessly into the environment. Concealed above the ceiling, the Cassette quietly removes harmful virus and bacteria, delivering clean, purified air into the space.
The air purifier uses our tried and tested ultraviolet germicidal irradiation (UVGI) technology to destroy viruses and bacteria from the air with up to 99.9% efficacy. The Ceiling Cassette is designed to replace one grid tile, fitting perfectly with typical office aesthetics. The versatile design means the Cassette is easy to retrofit within existing offices or install as part of a new office, healthcare or commercial fit-out design.
Compact and concealed
Uses reliable technology
Replaces a single ceiling tile
Quiet Operation
UVGI Technology – NON OZONE PRODUCING
This simple to install unit does not require external ducting and features 4 high output UV-C lamps. UVGI inactivates micro-organisms by attacking their DNA, permanently destroying and altering the molecular structure, leaving them unable to replicate
or grow. Ultraviolet (UV) light is measured in wavelengths with the UV-C wavelength within the range of 100 nanometer (nm) to 280 nm, emitting highly effective sterilization power.
The benefits of ultraviolet (UVC) technology
Eliminates up to 99.9% of pathogens
Deactivates pathogens and viruses
Simple to install
Energy efficient
| UVGI Ceiling Cassette Air Purifier | |
|---|---|
|
Max Air Volume |
up to 450m3/hour |
|
Dimensions |
W595mm | H595mm | D300mm |
|
Weight |
24KG Approx |
|
Power |
280W Maximum |
|
Area Capacity |
35sqm st 5 changes per hour |

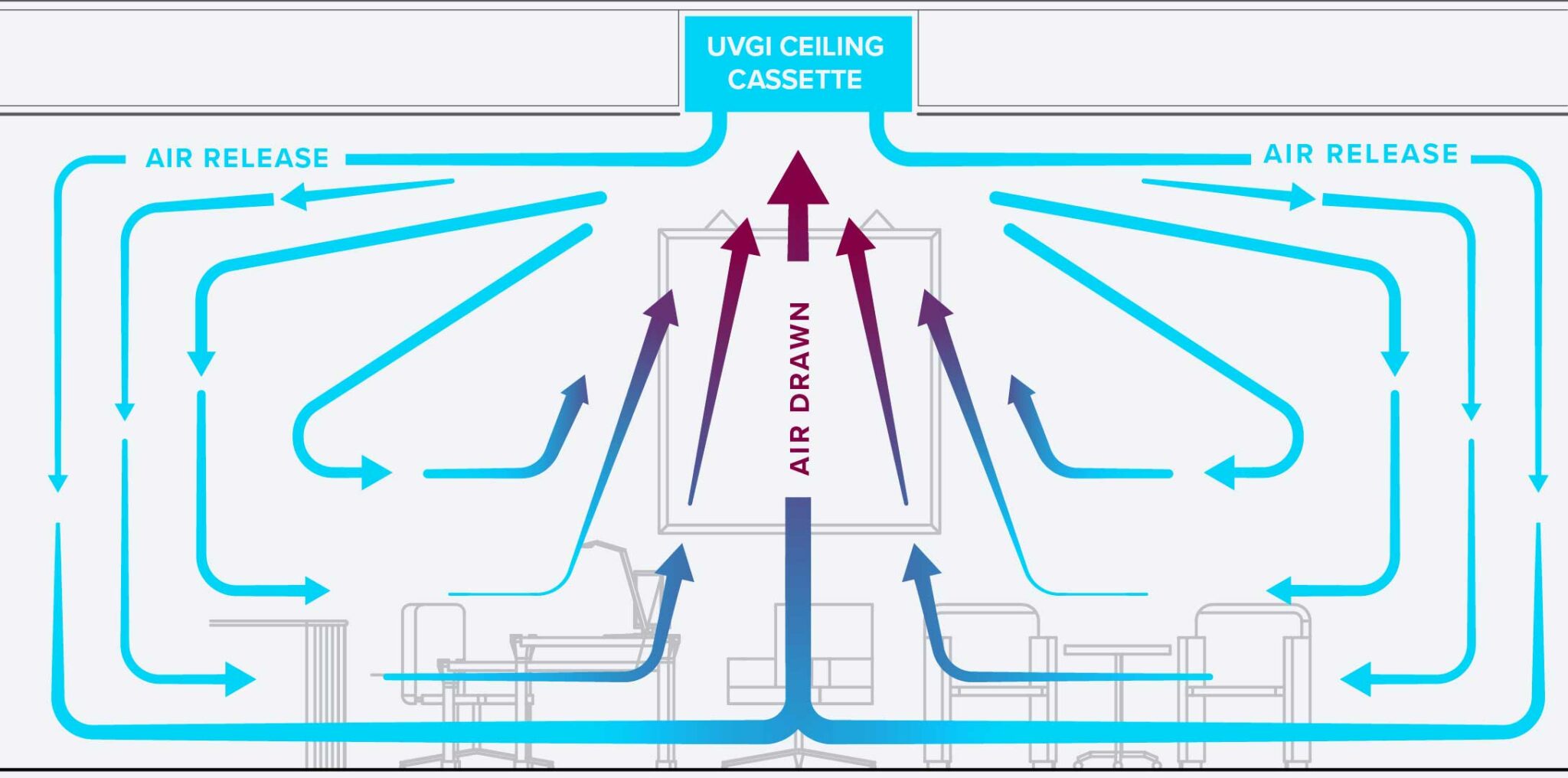

How it works
Our Cassette unit is concealed above the ceiling, delivering purified air to the space.
- Contaminated air is drawn into the unit
- Air is drawn into the irradiation chamber
- UV light disinfects the air
- Purified air is released back into the environment
