ESP centralised
Industrial
Our Electrostatic Precipitators, or ESPs, are ideally suited to larger volumes of smoke, fumes and oil mist. The unit’s sizeable modular capacity can be configured from 2500m3/h up to 60,000m3/h. They are IP65-rated and have a built-in sump and drain point.
Access doors and replaceable components enable them to be serviced easily and quickly, reducing workshop downtime. In addition, systems can be configured to remove odour to offer greater comfort within the workshop or industrial environment by lowering the contaminated air that is exhausted into the atmosphere.
Modular in design
Highly energy efficient
IP65 Rated
for outside installation
Competitive Cost
/ High availability
Highly efficient, Industrial Air Filtration
Global leading brands have trusted Purified Air for over 40 years. We take great pride in knowing that our Industrial Electrostatic Precipitators (ESP) are unrivalled, with an efficiency of up to 99% down to 0.01 of a micron. Our products are compact, energy-efficient and affordable for small workshops (cellular) but scalable for large turnkey projects (centralised), delivering a significant ROI.
Our primary goal is to create a cleaner workshop environment while also ensuring our products are easy to maintain and provide value for our customers.
The benefits of electrostatic technology
Eliminates up to 98% of particles
Filters particles down to sub-micron levels
Modular design
Energy efficient
| ESP 1500 | |
|---|---|
|
Max Air Volume |
up to 2520m3/h |
|
Dimensions |
W450mm | H630mm | D640mm |
|
Weight |
55KG |
|
Power |
20W |
| ESP 3000 | |
|---|---|
|
Max Air Volume |
up to 5040m3/h |
|
Dimensions |
W900mm | H630mm | D640mm |
|
Weight |
85KG |
|
Power |
30W |
| ESP 4500 | |
|---|---|
|
Max Air Volume |
up to 7560m3/h |
|
Dimensions |
W1350mm | H630mm | D640mm |
|
Weight |
118KG |
|
Power |
40W |
| ESP 6000 | |
|---|---|
|
Max Air Volume |
up to 10080m3/h |
|
Dimensions |
W1800mm | H630mm | D640mm |
|
Weight |
153KG |
|
Power |
50W |

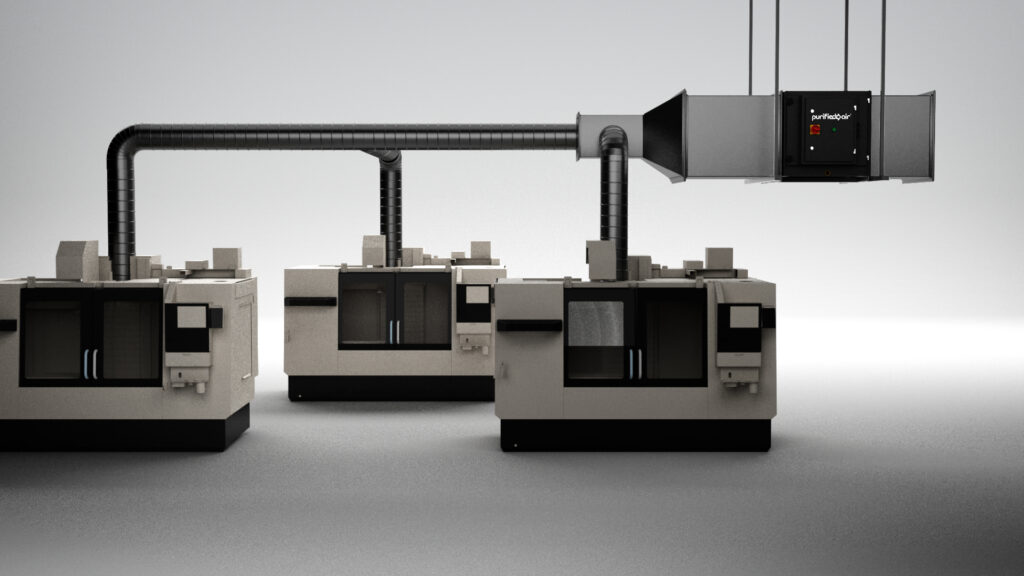

How it works
Our ESP units fit in-line with the machinery's ducting and can be con-figured modularly to cope with all extract volume requirements.
- Machinery generate smoke, fumes and oil mist particulates and odours
- Extract pipes draw pollutants out via ducting
- ESP – Particulate Control Unit
- Air Flow
Technology
used by
Our commercial air filtration systems have been designed and manufactured for some of the world’s most prestigious organisations.
