Fan Coil UVGI
Indoor Air Quality
Fan Coil mounted Air Purifier
Our UVGI range has a destructive effect with micro-organisms such as viruses and bacteria. SARS-CoV-2, the virus responsible for Covid-19, can be inactivated by exposure to UVGI.
Designed to be installed in offices, gyms and other commercial premises to remove airborne particles and help to destroy viruses including Coronavirus.

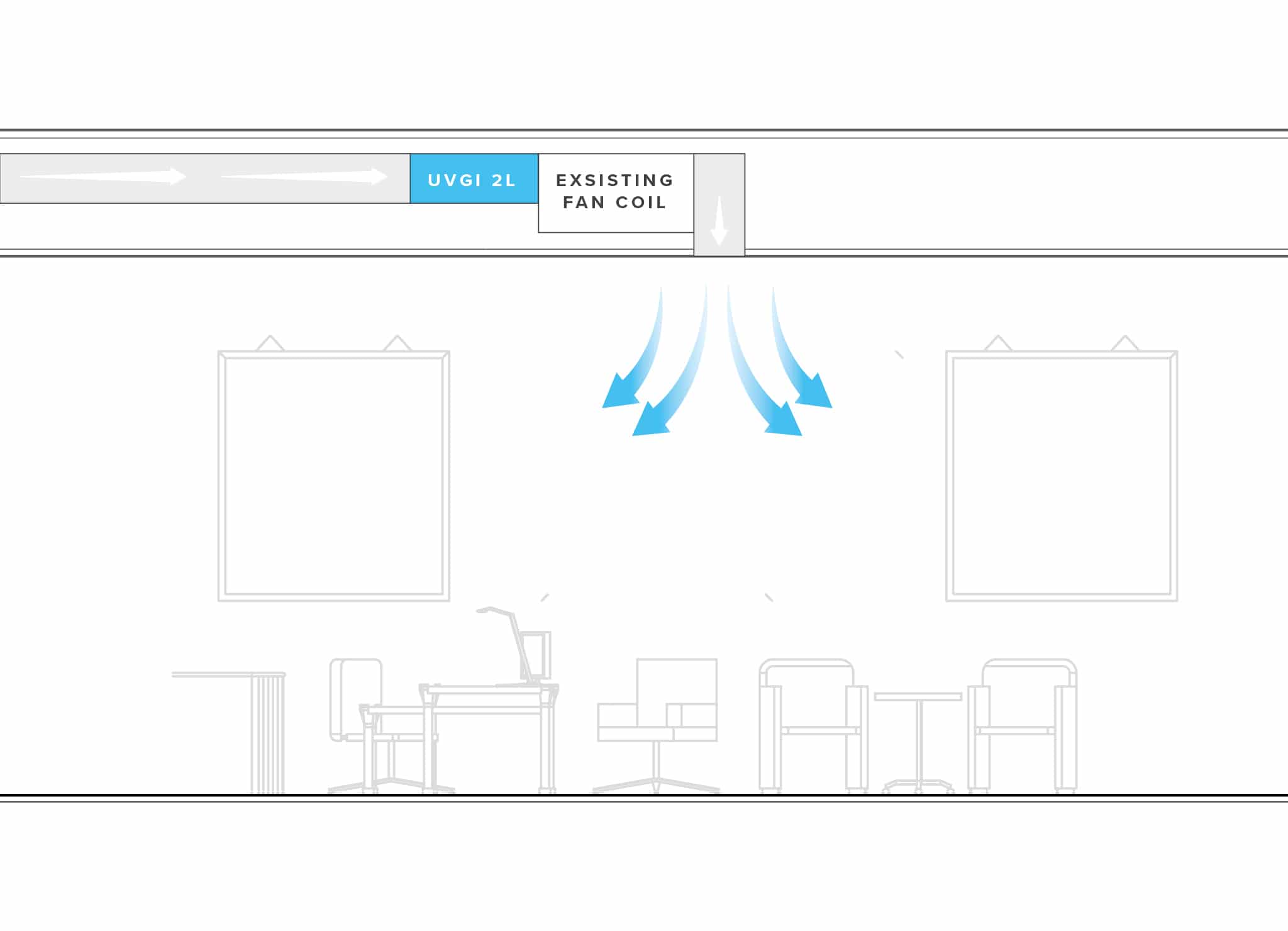

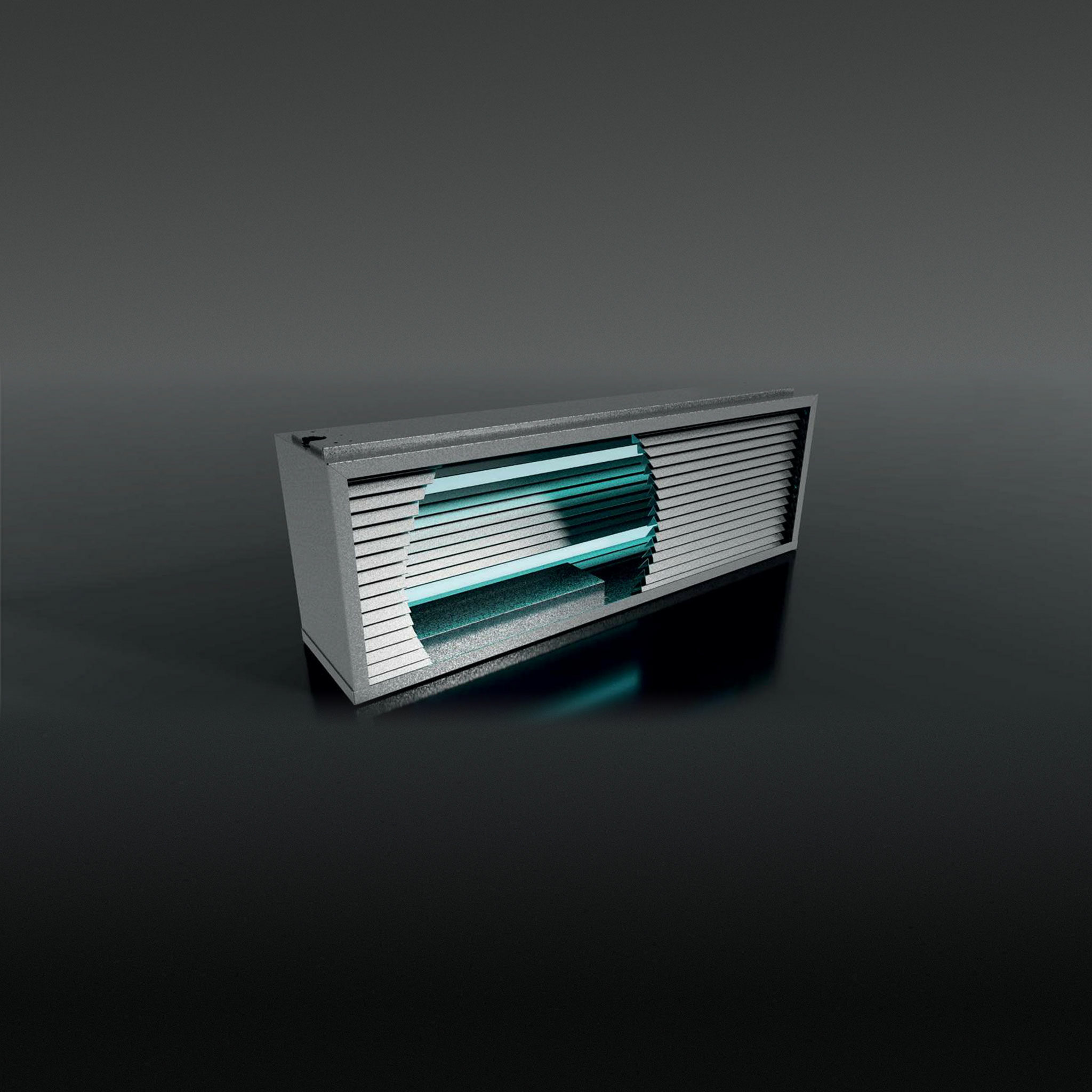

The Fan Coil UVGI 2L & 4L use UV-C technology to irradiate virus and bacteria. The unit can be located in line with a new or existing fan coil unit as part of the room air distribution. Each individual unit sits directly in the air stream and features either 2 or 4 high output UV-C lamps. UVGI inactivates micro-organisms by attacking their DNA, permanently destroying and altering the molecular structure, leaving them unable to replicate or grow. Ultraviolet (UV) light is measured in wavelengths with the UV-C wavelength within the range of 100 nanometer (nm) to 280 nm emitting highly effective sterilization power. UV-C germicidal wavelength at around 260nm is the most effective to kill harmful microorganisms in the air and on surfaces.
Fan Coil UVGI 2L & 4L:
UVGI inactivates micro-organisms by attacking their DNA, permanently destroying and altering their molecular structure, leaving them unable to replicate or grow.
Our technology incorporates:
- Our technology incorporates: Handling of up to 0.4m3/sec
of air flow.
- Adapter and installation kits available for most popular brands of FCU.
- UVGI delivered by two or four high output UV-C lamps.
The benefits of ultraviolet (UVC) technology
|Fan Coil UVGI 2L
Max Air Volume
|up to 0.2m3/sec
|W1150mm | H218mm | D260mm
|Fan Coil UVGI 4L
Max Air Volume
|up to 0.4m3/sec
|W1150mm | H218mm | D425mm
