UVGI Range
Indoor Air Quality
Our UVGI range has a destructive effect with micro-organisms such as viruses and bacteria. Specifically, SARS-CoV-2, the virus responsible for Covid-19, can be inactivated by exposure to UVGI.
Our technology incorporates UV-C lamps shielded by their module to reduce the collection of dirt on their surface thus extending their optimum efficiency. Additionally, they have the ability to provide the units in simple format or fully monitored with each module of lamps able to provide a local alarm or a BMS signal if in fault.
Uses reliable technology
Tried and tested
Modular design
Minimal maintenance
OUR LAMPS – NON OZONE PRODUCING

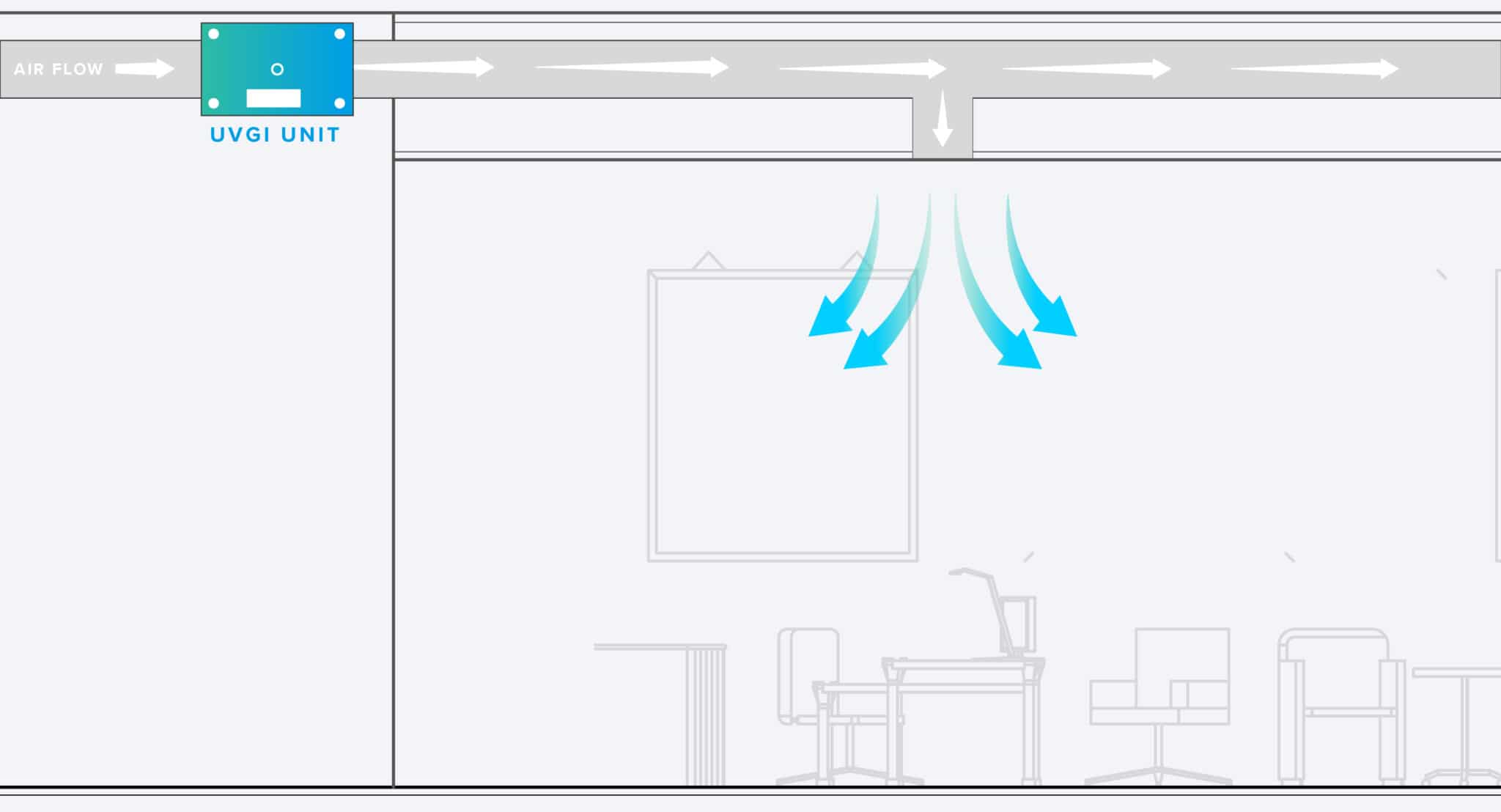

Each individual unit sits directly in the air stream and can feature from 4 to 24 high output UV-C lamps supplied in modules of 4. The number of modules specified will be dependent on the air volume which will dictate the amount of irradiation needed. UVGI inactivates micro-organisms by attacking their DNA, permanently destroying and altering the molecular structure, leaving them unable to replicate or grow. Ultraviolet (UV) light is measured in wavelengths with the UV-C wavelength within the range of 100 nanometer (nm) to 280 nm emitting highly effective sterilization power. UV-C germicidal wavelength at around 260nm is the most effective to kill harmful microorganisms in the air and on surfaces.
The benefits of ultraviolet (UVC) technology
Eliminates up to 99.999% of particles
Deactivates pathogens and viruses
Modular design
Energy efficient
UVGI 1500 | |
---|---|
Max Air Volume |
up to 0.7m3/sec |
Dimensions |
W450mm | H630mm | D640mm |
Weight |
43KG Approx |
Power |
560W |
UVGI 3000 | |
---|---|
Max Air Volume |
up to 1.4m3/sec |
Dimensions |
W900mm | H630mm | D640mm |
Weight |
66KG |
Power |
560 – 1120W |
UVGI 4500 | |
---|---|
Max Air Volume |
up to 2.1m3/sec |
Dimensions |
W1350mm | H630mm | D640mm |
Weight |
89KG |
Power |
1120 – 1680W |
UVGI 6000 | |
---|---|
Max Air Volume |
up to 2.8m3/sec |
Dimensions |
W1800mm | H630mm | D640mm |
Weight |
112KG |
Power |
1680 – 2240W |
